Small Vertical 3 Bladeswind Turbine Kit, 12V/24V/48V 1000W Vertical Tu

Small Vertical 3 Bladeswind Turbine Kit, 12V/24V/48V 1000W Vertical Turbine Generator with Controller for Terrace/Chalet(White)

$322.21 $883.88

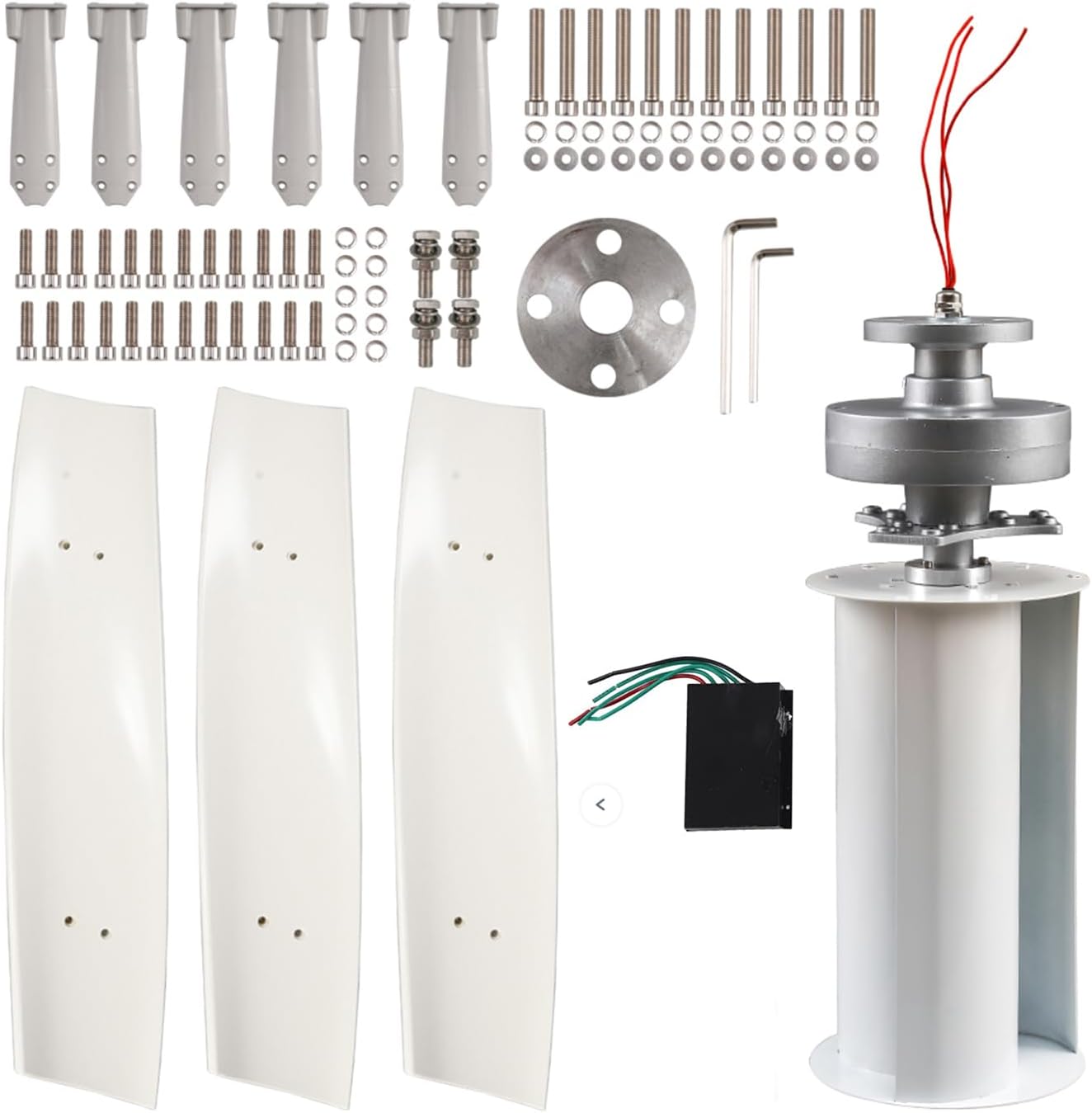

PACKING LIST:

3×pcs blades

1×generator

1 ×bolts &nuts

1× Main shaft and arms

1×Wind controller

SPECIFICATIONS:

Blades quantity:3

Rated voltage(AC):12V 24V 48V 220V

Rated power(W):3000W

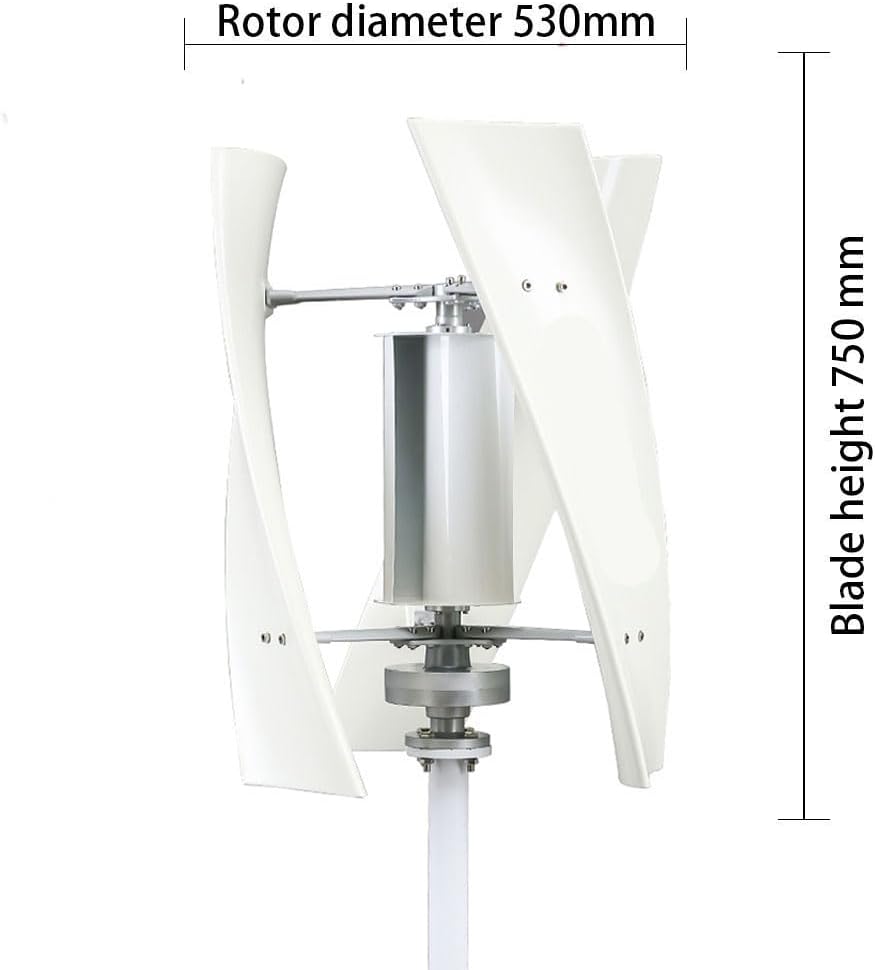

Rotor Diameter of Blades(m):0.52m

Product assembly weight (Kg):<12KG

Blades height(m):0.75m

Started wind speed (m/s):2 m/s

Cut-in wind speed (m/s):3 m/s

Rated Wind speed (m/s):10 m/s

Safe wind speed (m/s):≤40m/s

Blade material:Galvanized aluminum alloy

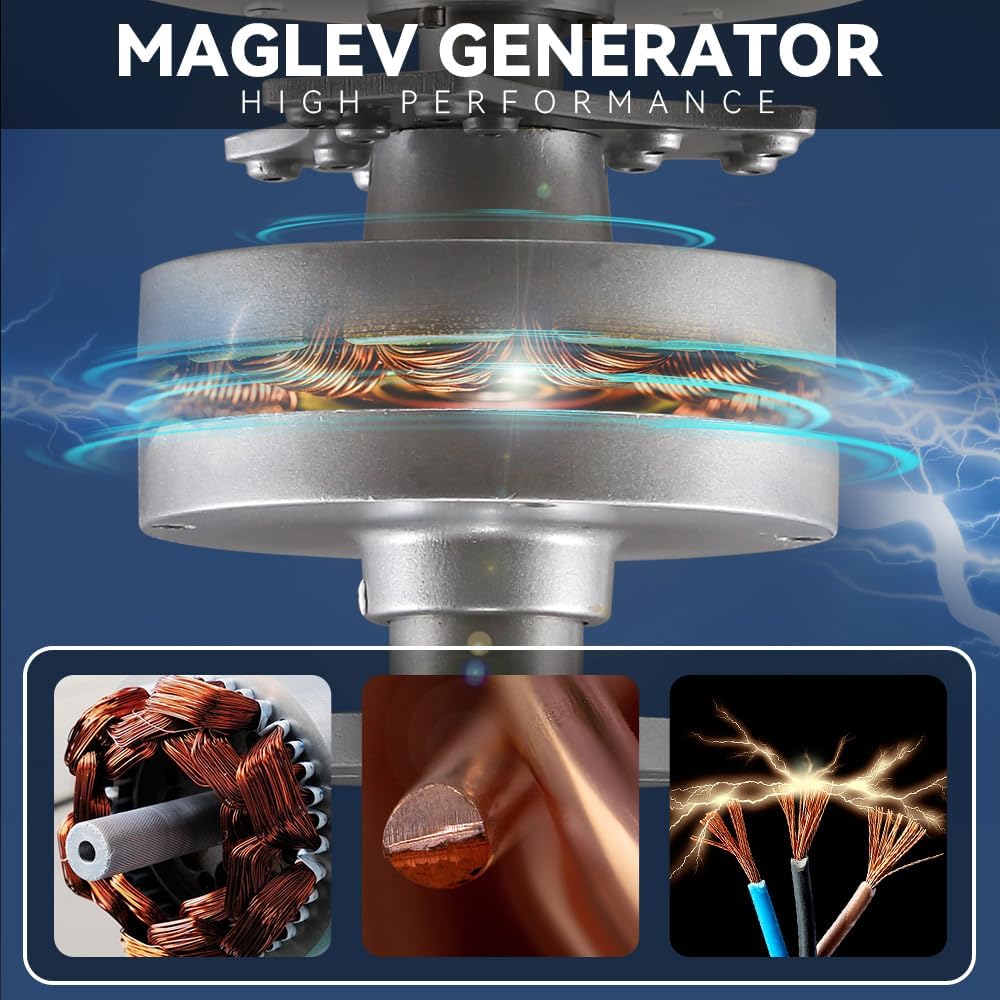

Generator:Three phase permanent magnet suspension motor

Control System:Electromagnet

Mount Height(m):2- 12m

Generator protection grade:IP54

Work environment temperature:-25~ +459C

Work environment humidity:≤90%

Altitude:≤4500m

Overspeed protection:Electromagnetic brake

Overload protection:Electromagnetic brake and the unloading unit
