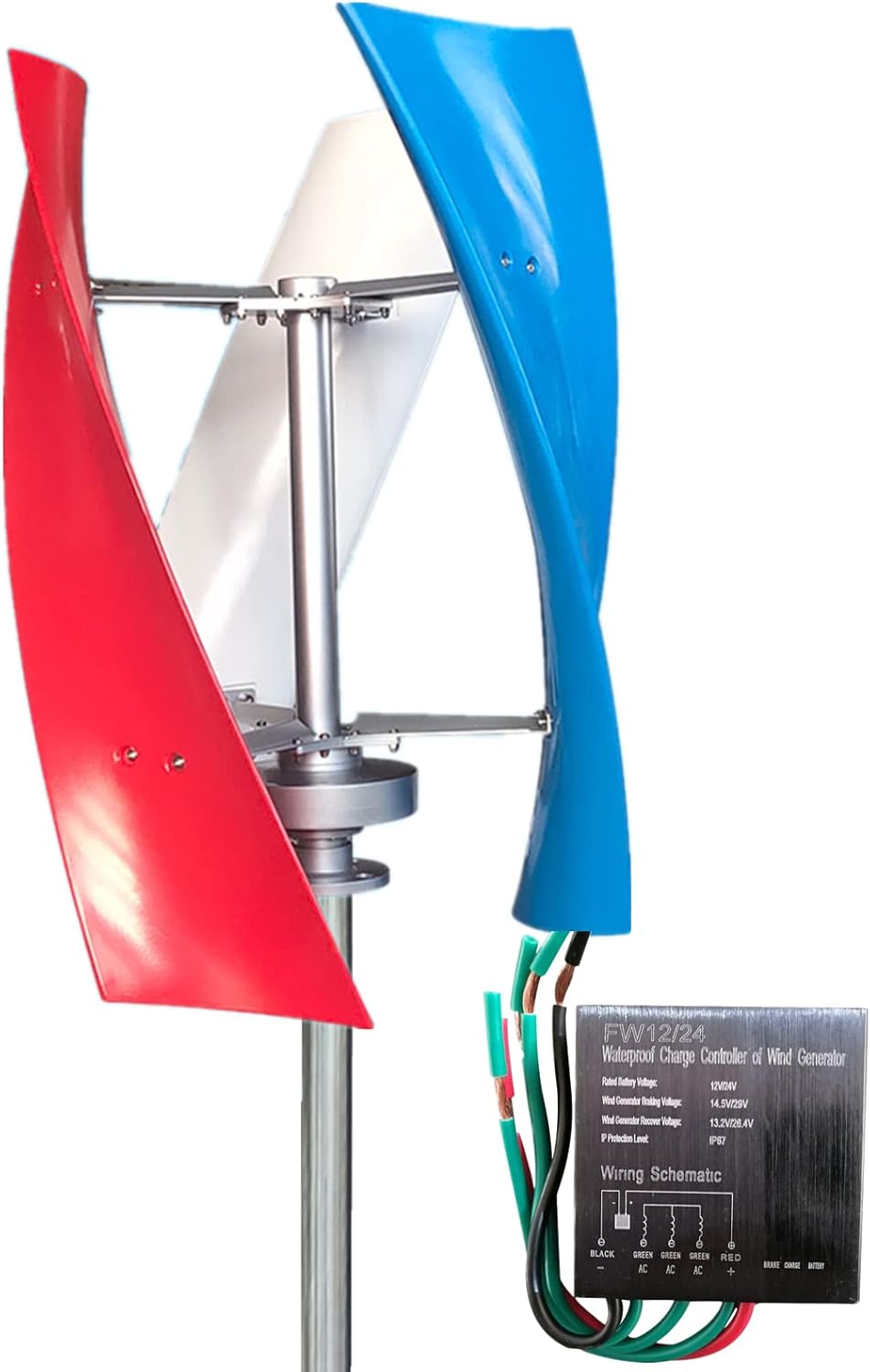

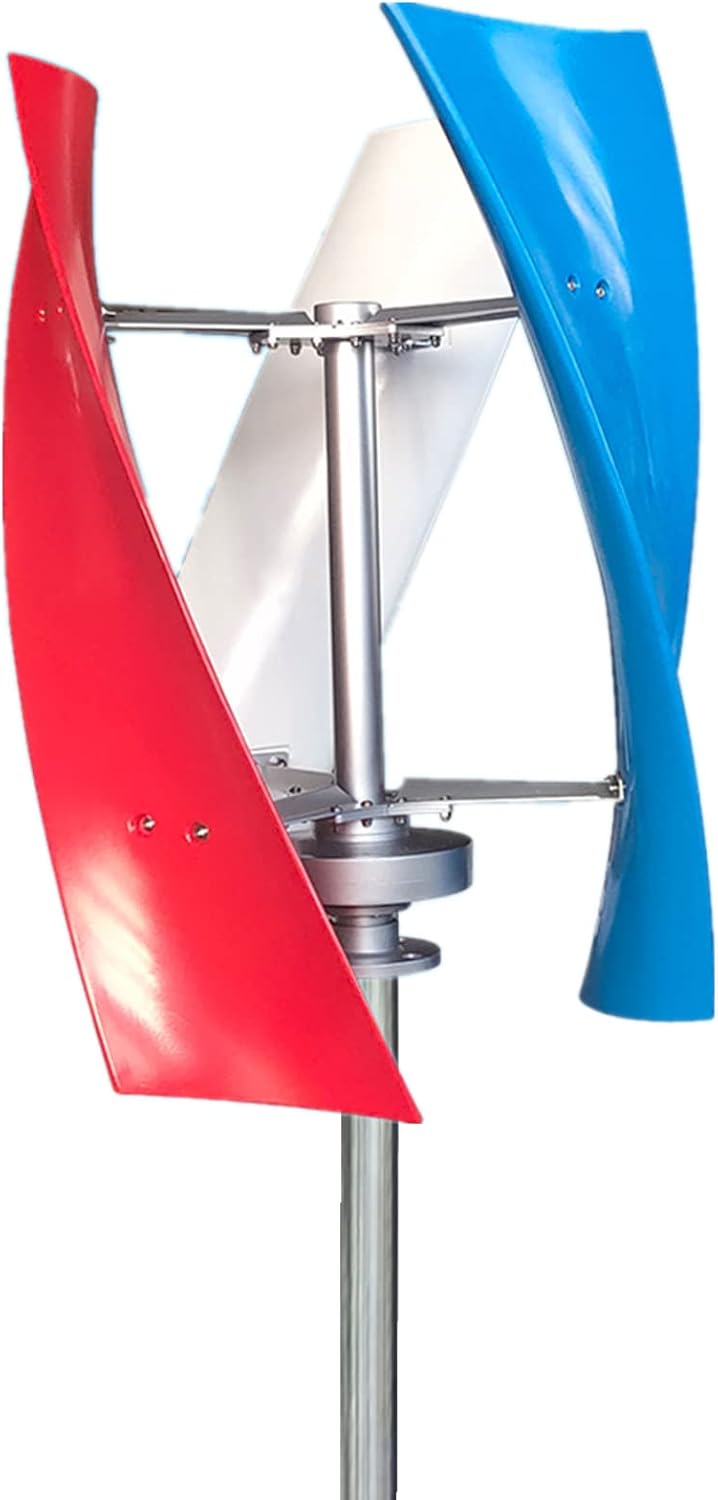

Helix Maglev Vertical Axis Wind Power Turbine Generator - 450W 24V DC, Charge Controller, 3 Blades, Home Windmill Kit for Hybrid Wind Solar System

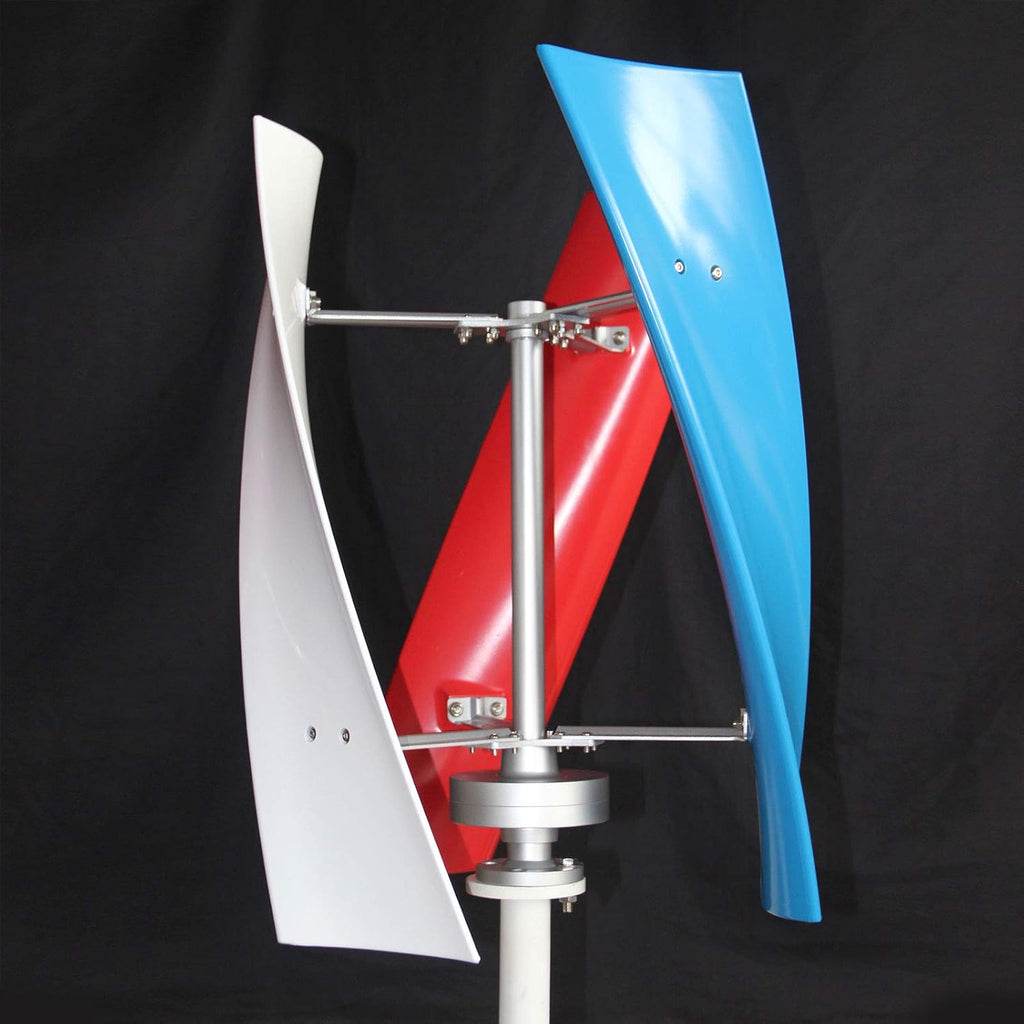

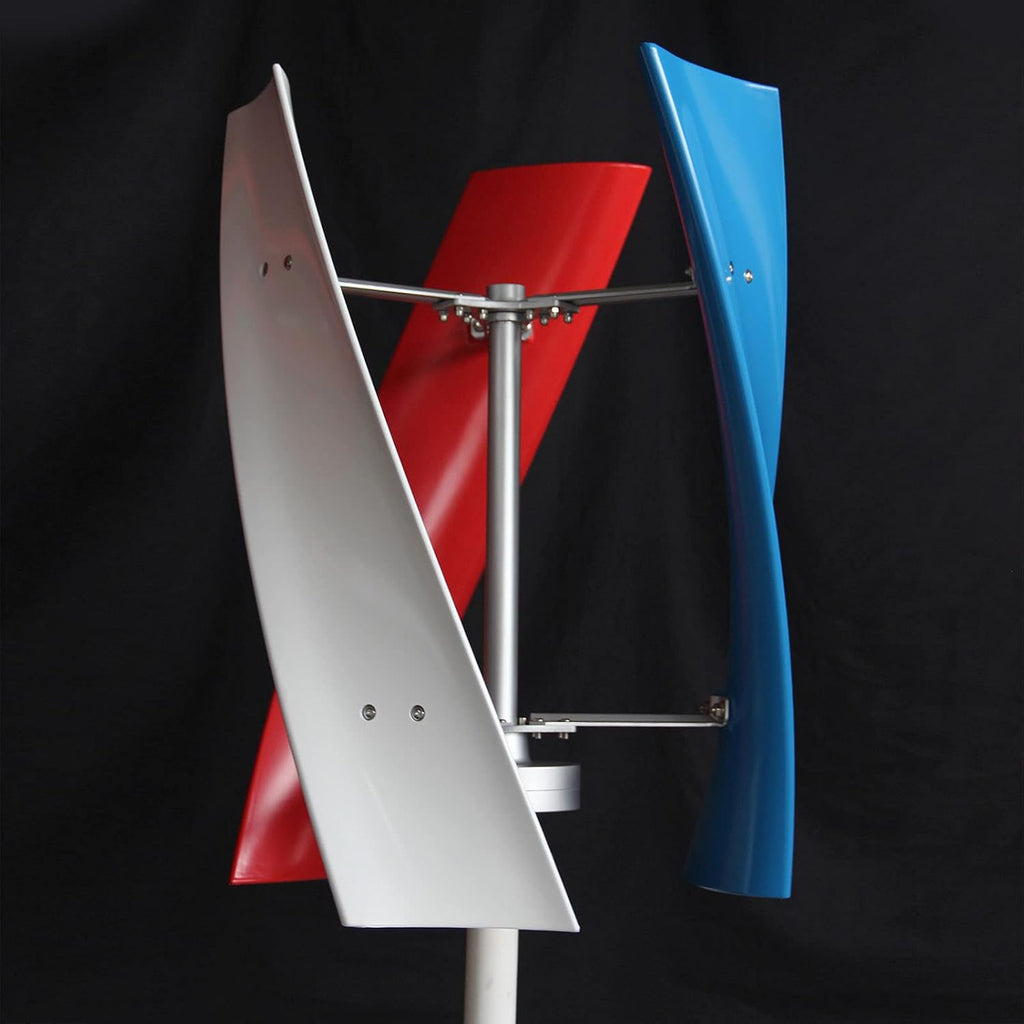

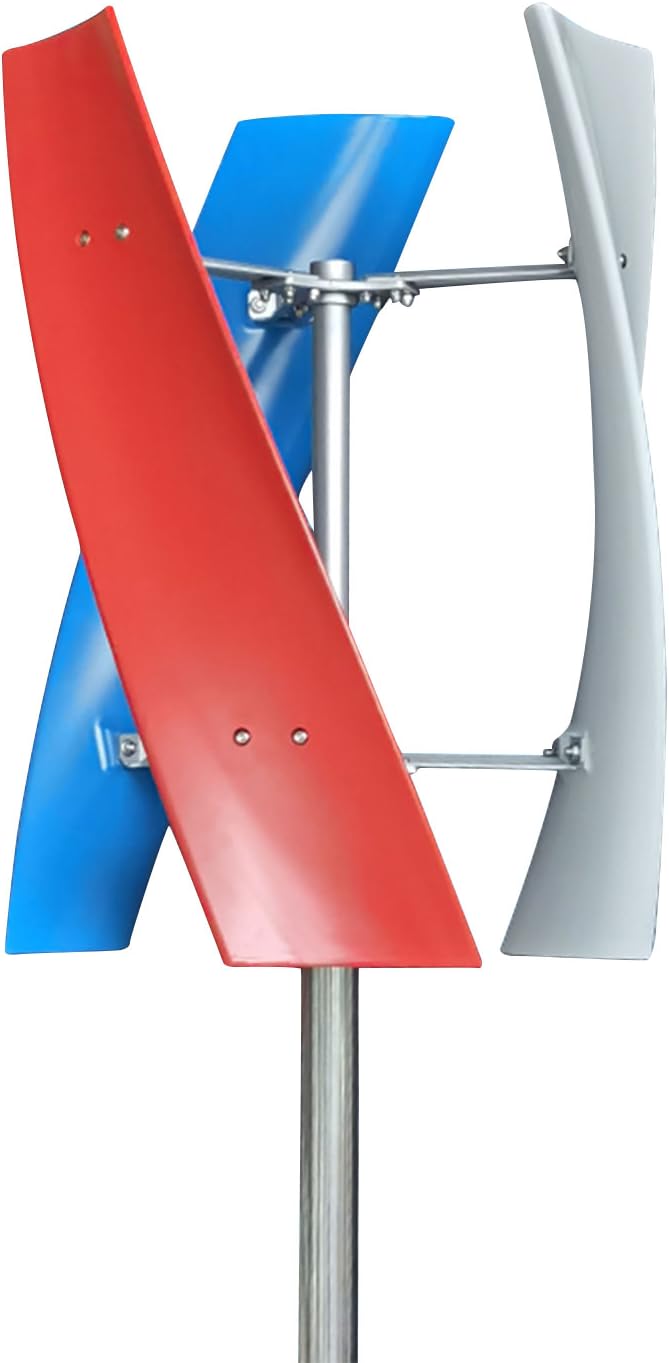

Description:◆ The wind turbine with the coreless permanent magnet generator and 3 high-strength fiberglass blades.◆ The spiral blades are aerodynamically designed to make the rotor run smoothly and reliably for stable electricity generation.◆ It is well suited for boats, gazebos, cabins or mobile houses, and other energy supplies for homes, businesses and industry.
Specifications:◆ Rated Voltage: 24V◆ Rated Power: 400W◆ Max Power: 450W◆ Generator: Maglev Generator◆ Controller System: Electromagnetism◆ Starting Wind Speed: 4.2 ft/s◆ Cut-in Wind Speed: 8.2 ft/s◆ Rated Wind Speed: 36 ft/s◆ Max Instantaneous Wind Speed: ≤ 130 ft/s◆ Instantaneous Maximum Wind Speed: ≤ 148 ft/s◆ Speed Regulation: Automatic◆ Over-speed Protection: Electromagnetic Brake◆ Blades Quantity: 3◆ Blade Material: Glass Fiber◆ Diameter of Blades: 24''◆ Blades Height: 32''◆ Protection Grade: IP67 ◆ Work Environment Temperature: -40°F~140°F◆ Service Life: 10-15 Years◆ Package size: 35'' x 15'' x 8''◆ Shipping weight: 22 lbs

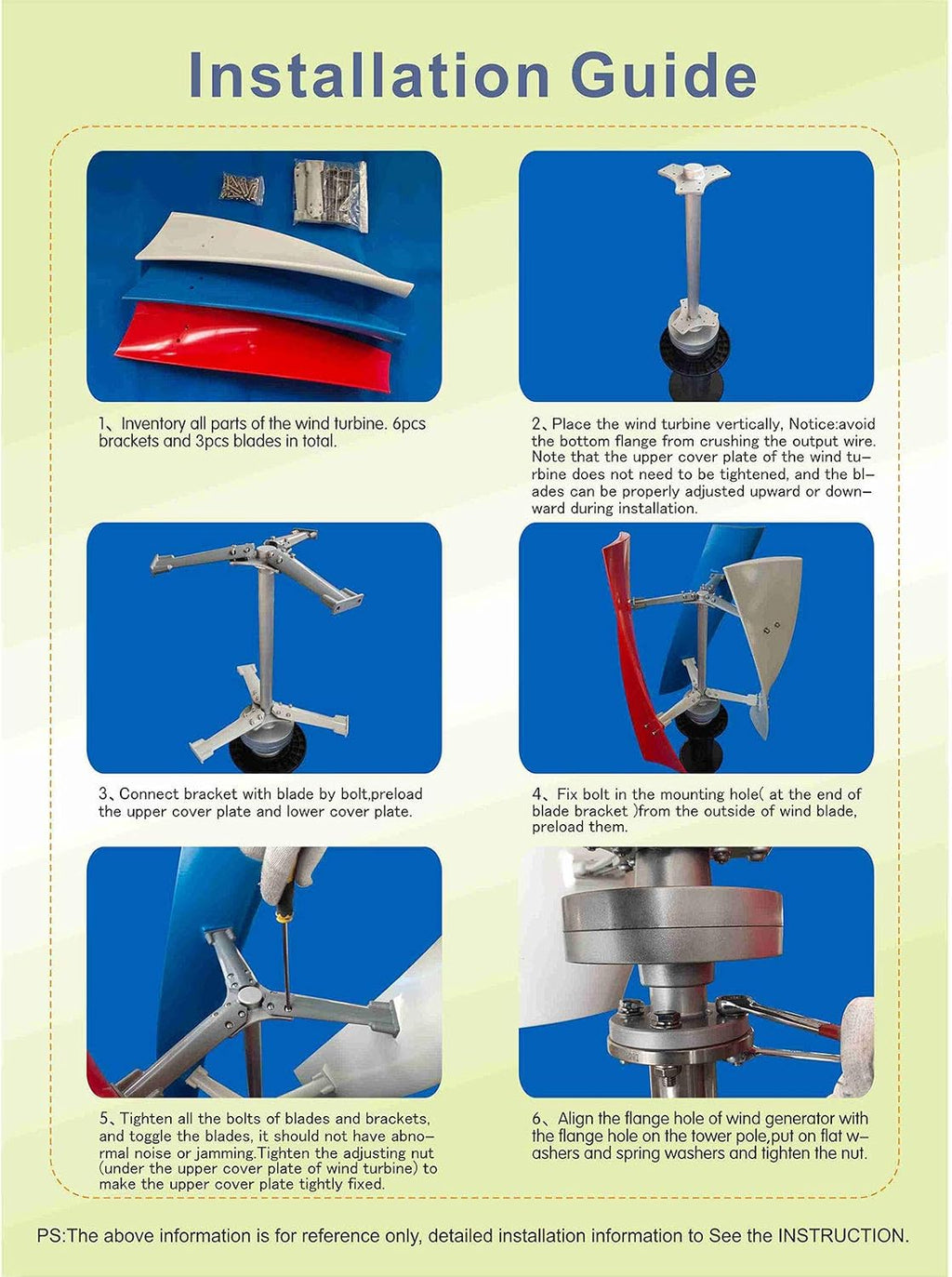

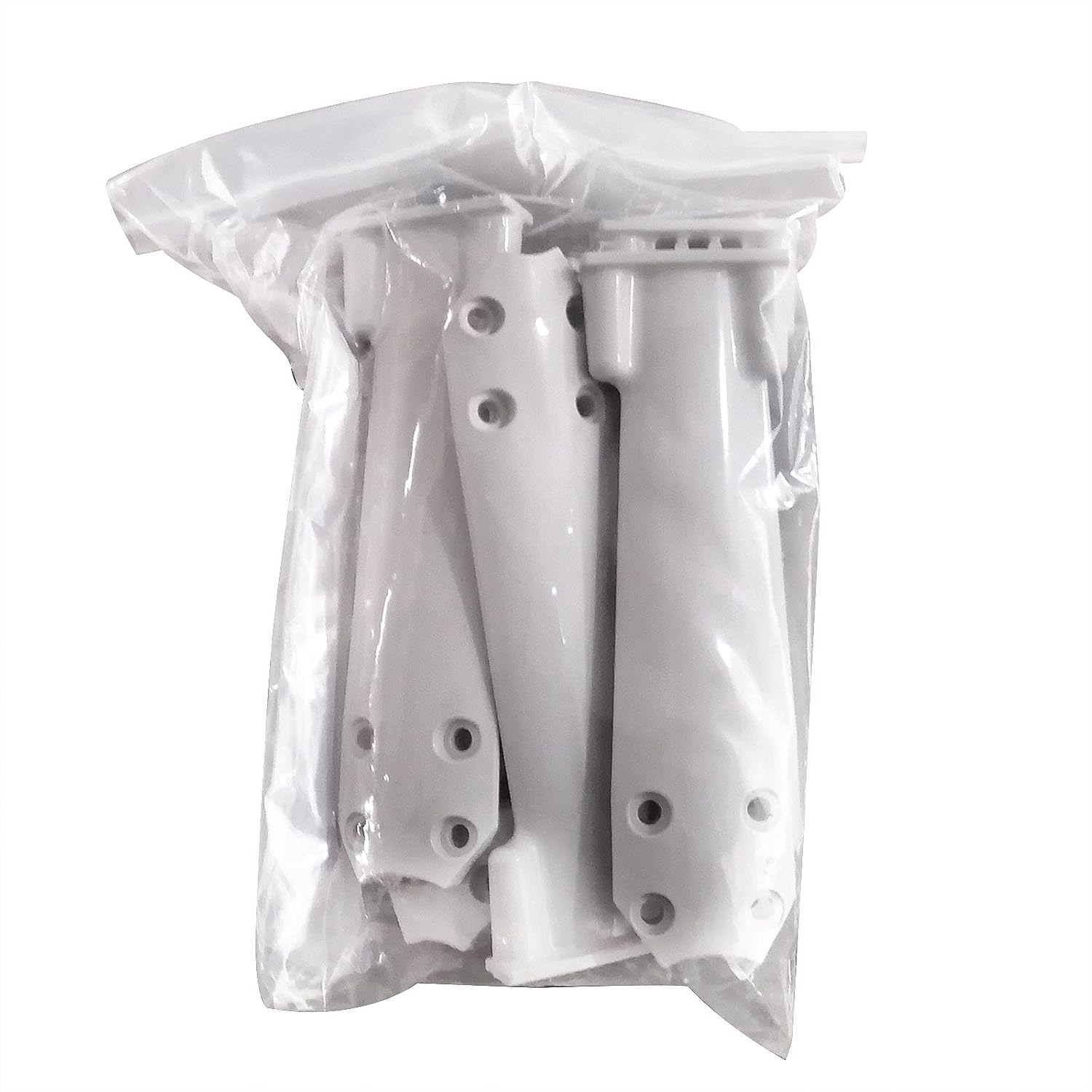

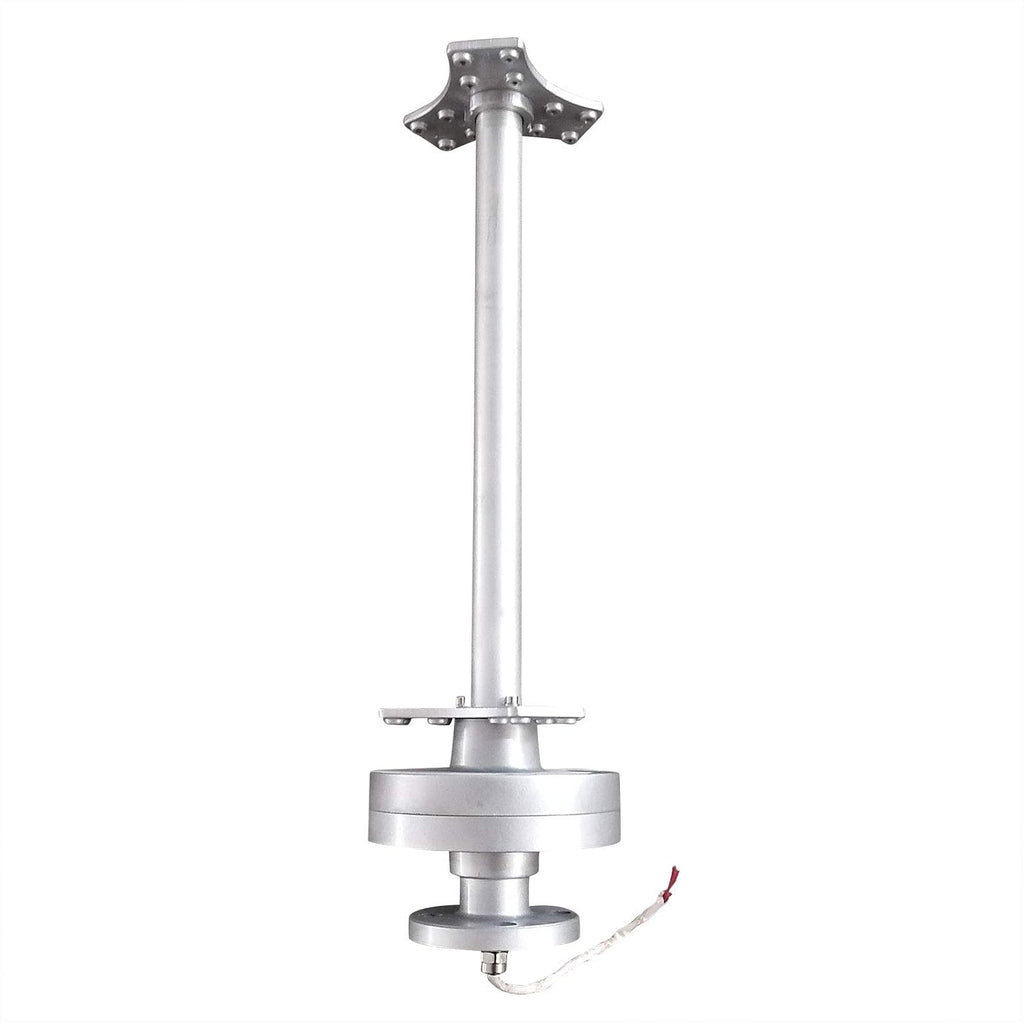

Installation Instructions:◆ Check all the parts, includes 6 brackets and 3 blades in total.◆ Place the wind turbine vertically.◆ Connect brackets with blades by the bolt. Load the upper cover plate and lower cover plate.◆ Fix the bolt in the mounting hole (at the end of the bracket) from the outside of the wind blade.◆ Tighten all the bolts of blades and brackets, and toggle the blades.◆ Tighten the nut (under the upper cover plate of the wind turbine) to make the upper cover plate tightly fixed.◆ Align the flange hole of the wind turbine with the flange hole on the tower pole, put on flat washers and spring washers, and tighten the nut.

Additional details

• Color : Wind Turbine Generator 450W 24V 3 Blades

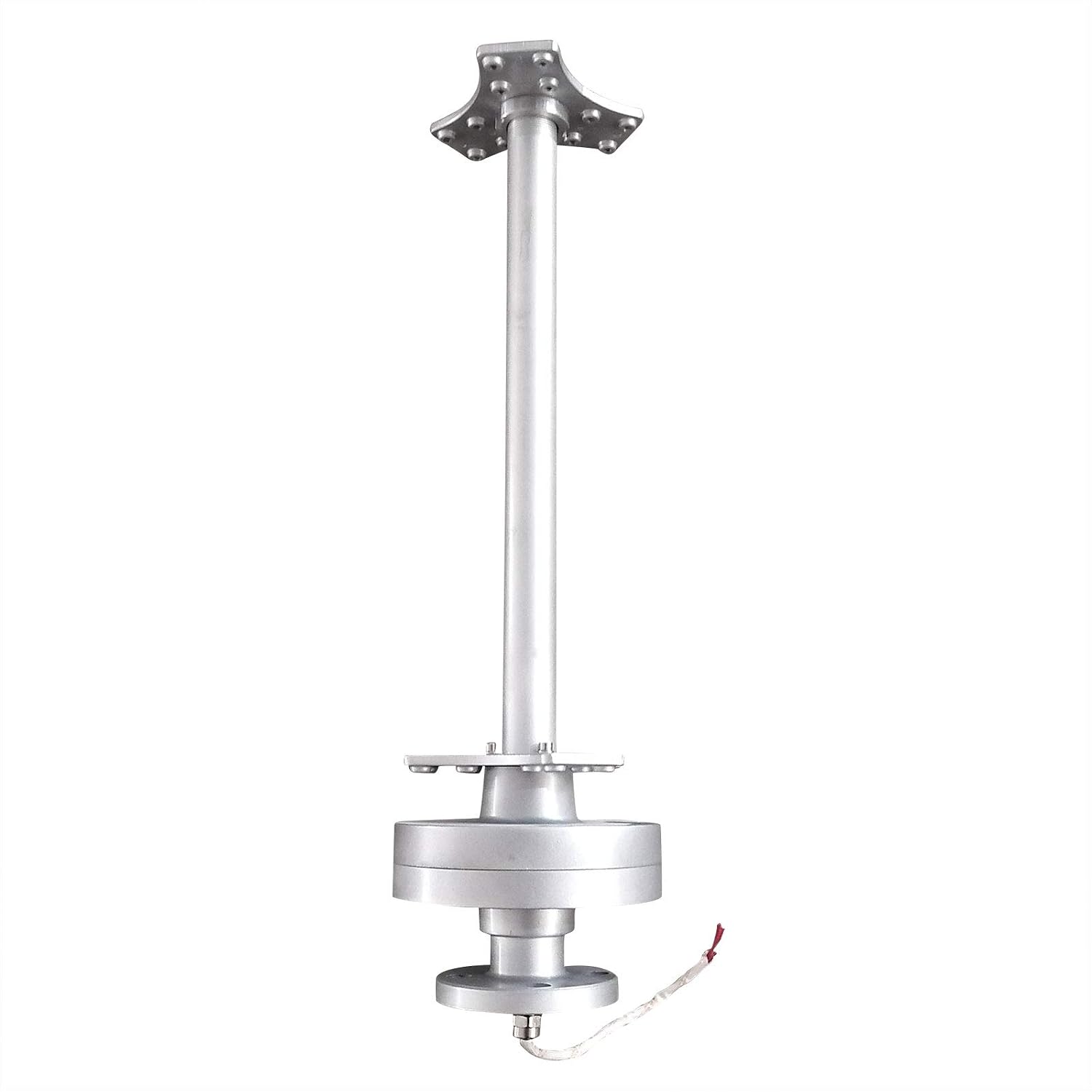

• Material Type : Maglev Generator + Glass Fiber Blade

Features & Specs

• Additional Features : Over-speed Protection
• Current Rating : 16.67 Amps
• Engine Power Maximum : 450 Watts
• Engine Type : Maglev Generator
• Fuel Type : wind
• Ignition System Type : Magneto
• Output Wattage : 450 Watts
• Power Source : Wind
• Recommended Uses For Product : Commercial, Residential
• Running Wattage : 400 Watts
• Smart Home Compatibility : Not Smart Home Compatible
• Starting Wattage : 450 Watts
• Total Power Outlets : 1
• Voltage : 24 Volts (DC)
• Wattage : 450 watts

Item details

• ASIN : B0BQC3PG9Z
• Brand Name : Gdrasuya10

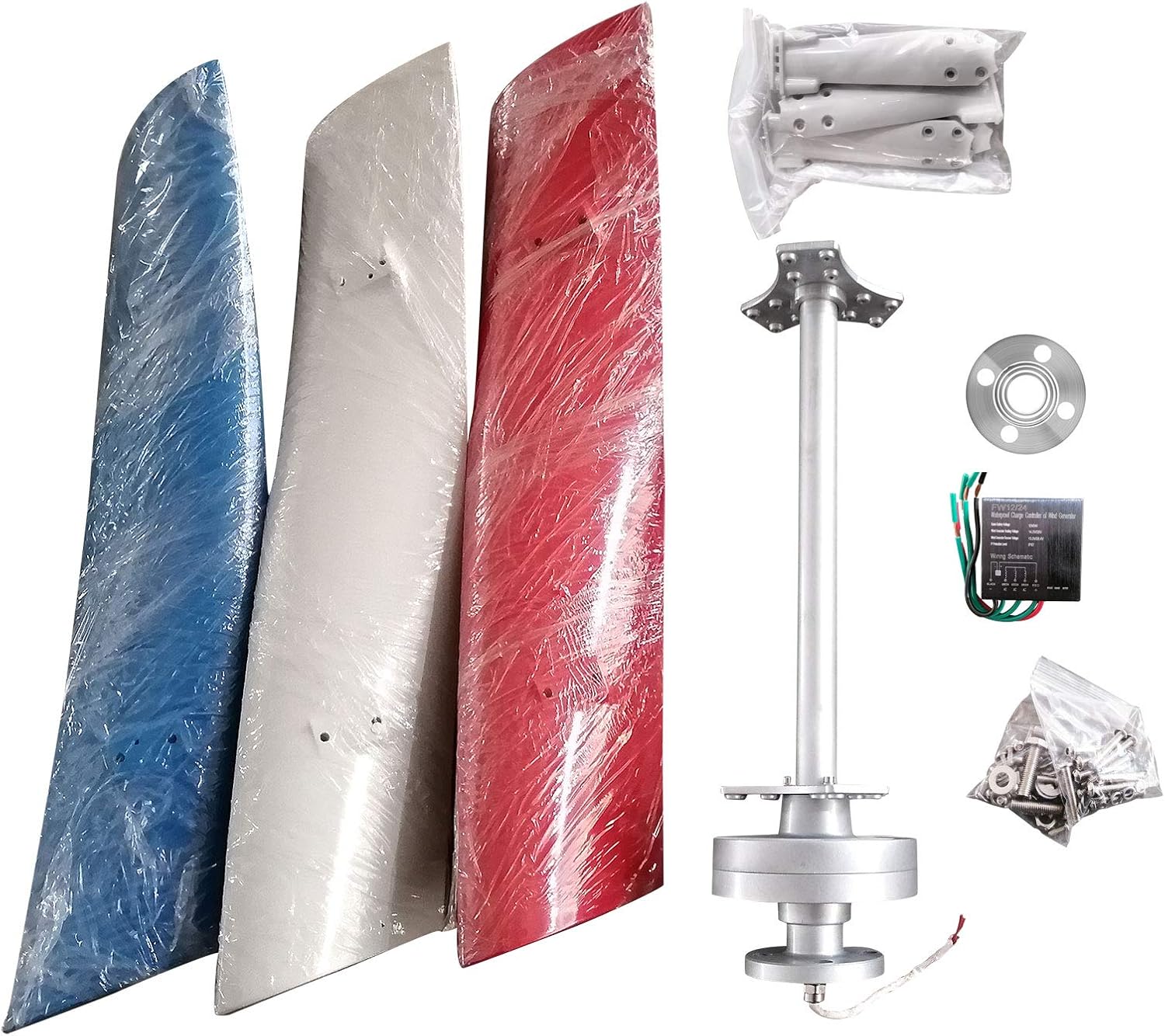

• Included Components : 1 x Wind Turbine + 1 x Controller + 3 x Blades + 2 x Bags of Installation Screws
• Manufacturer : LianDu-US
• Manufacturer Part Number : LD-3BLADES
• Model Number : DC24V450W
• Unit Count : 1.0 Count

Measurements

• Item Weight : 20 Pounds
