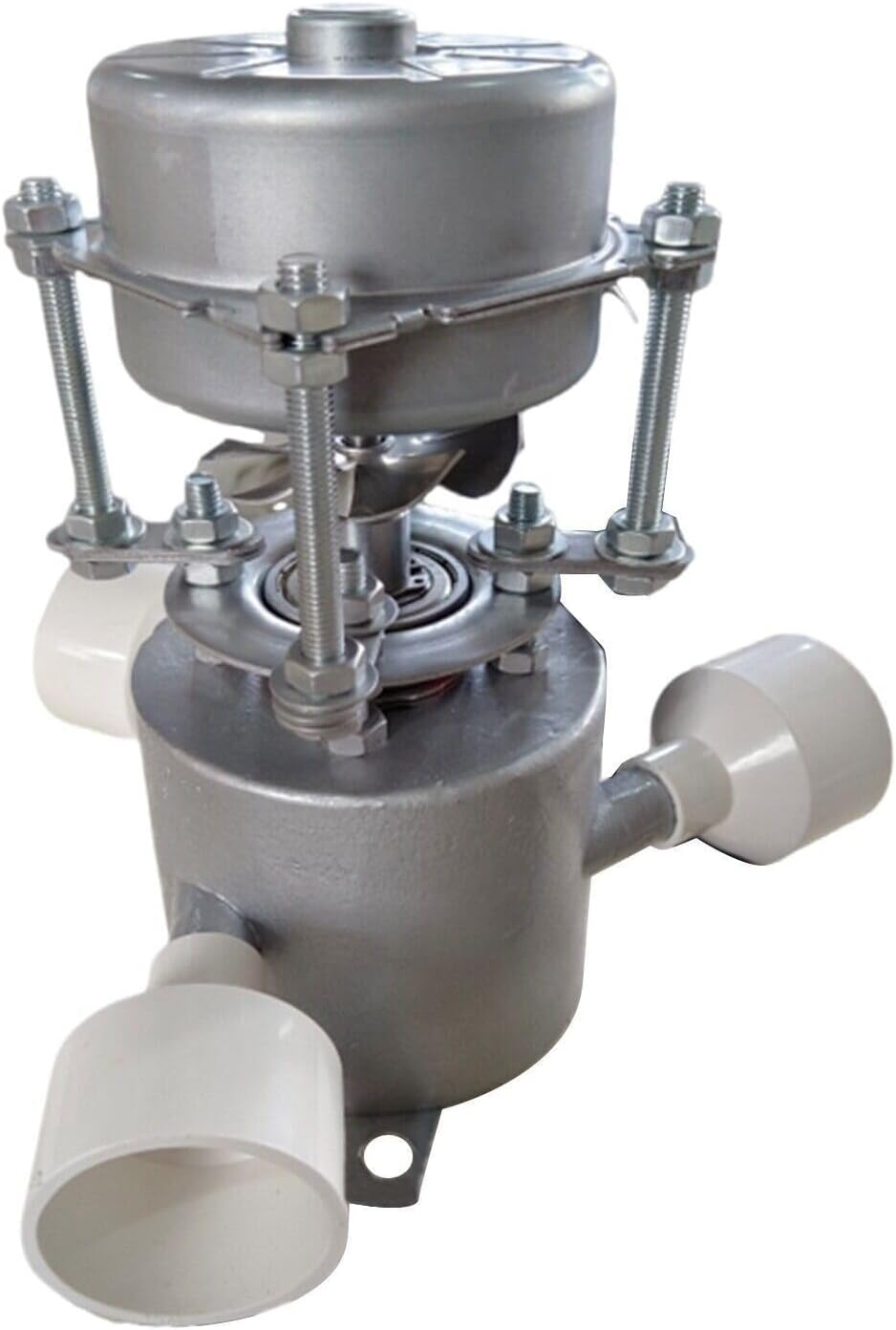

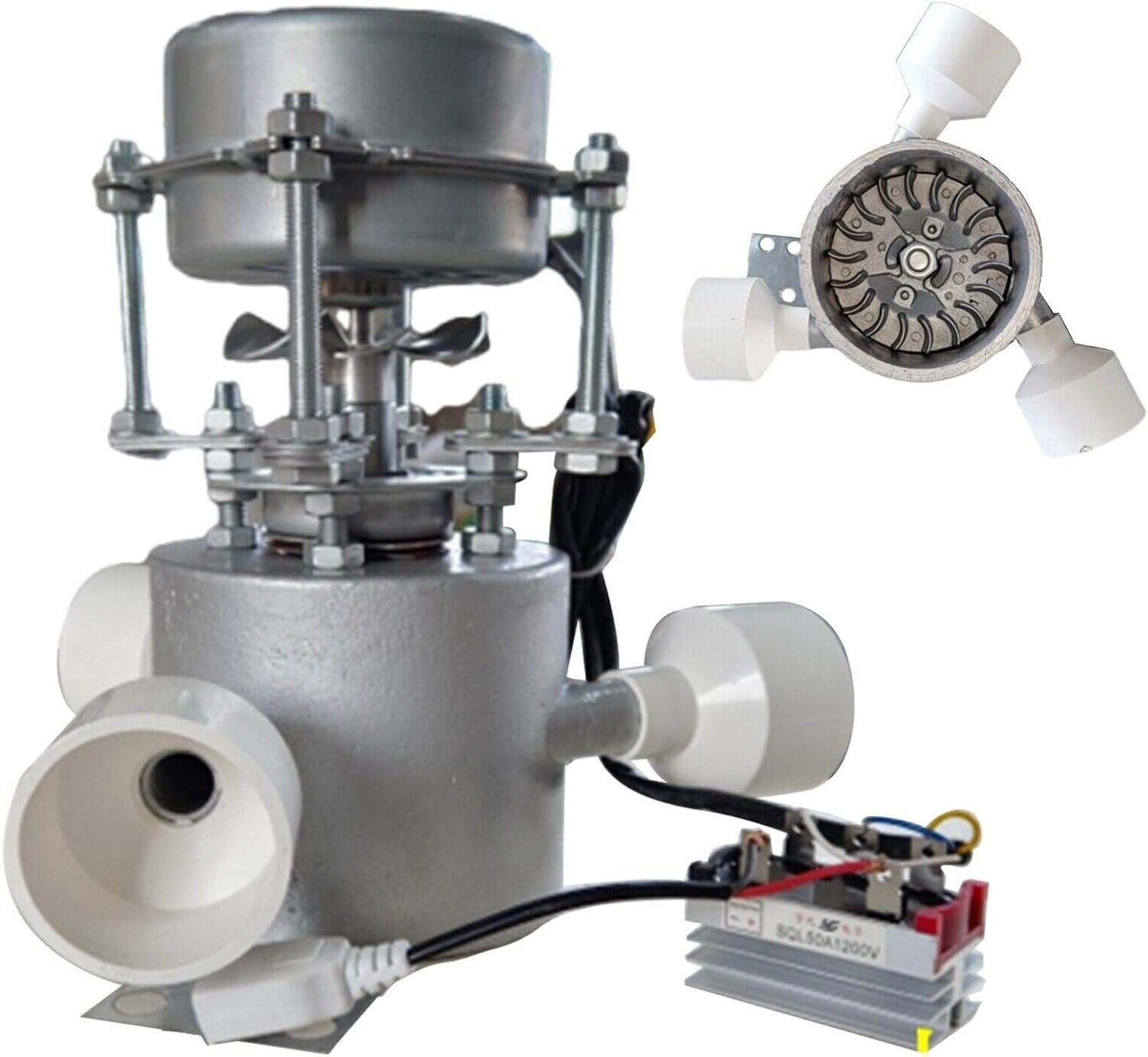

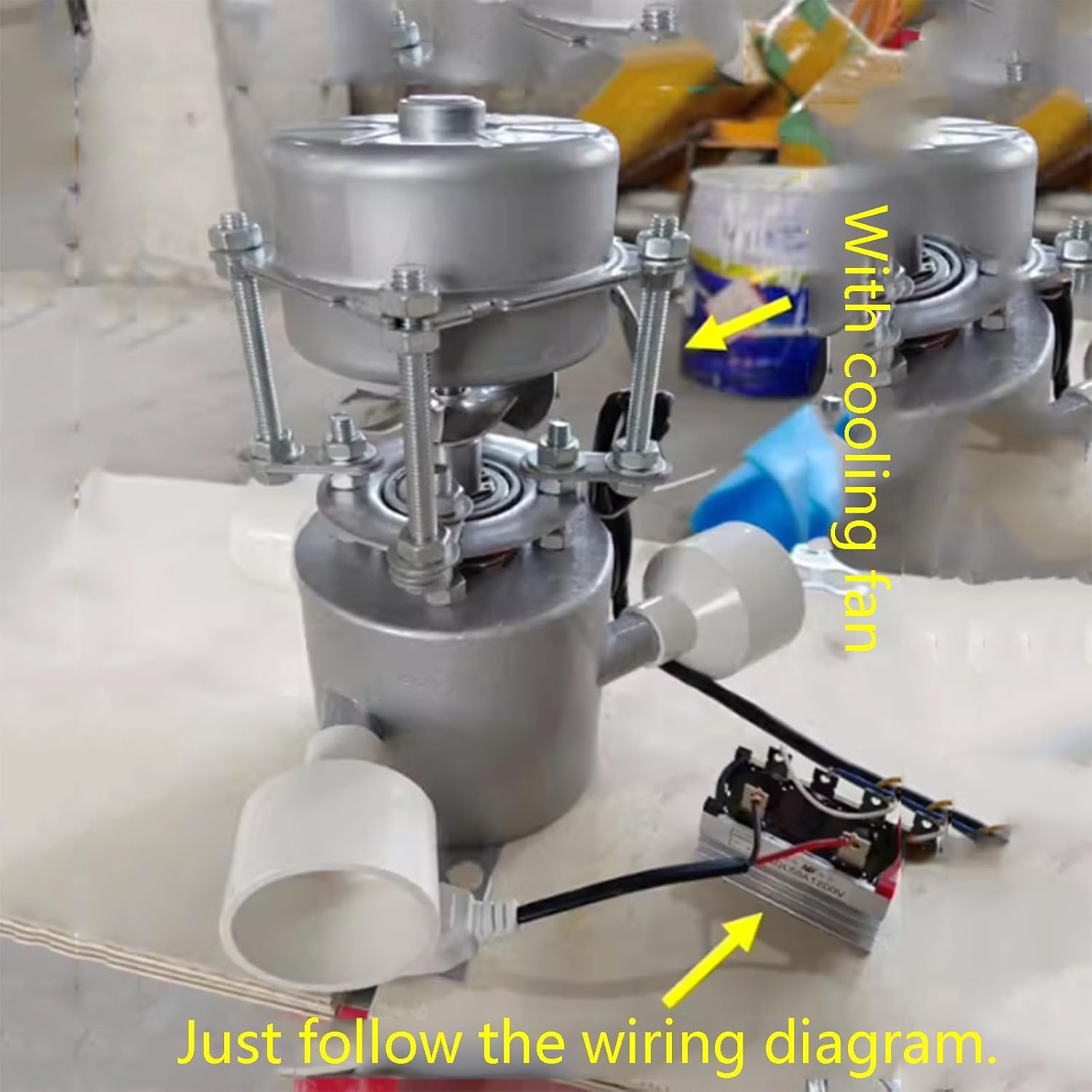

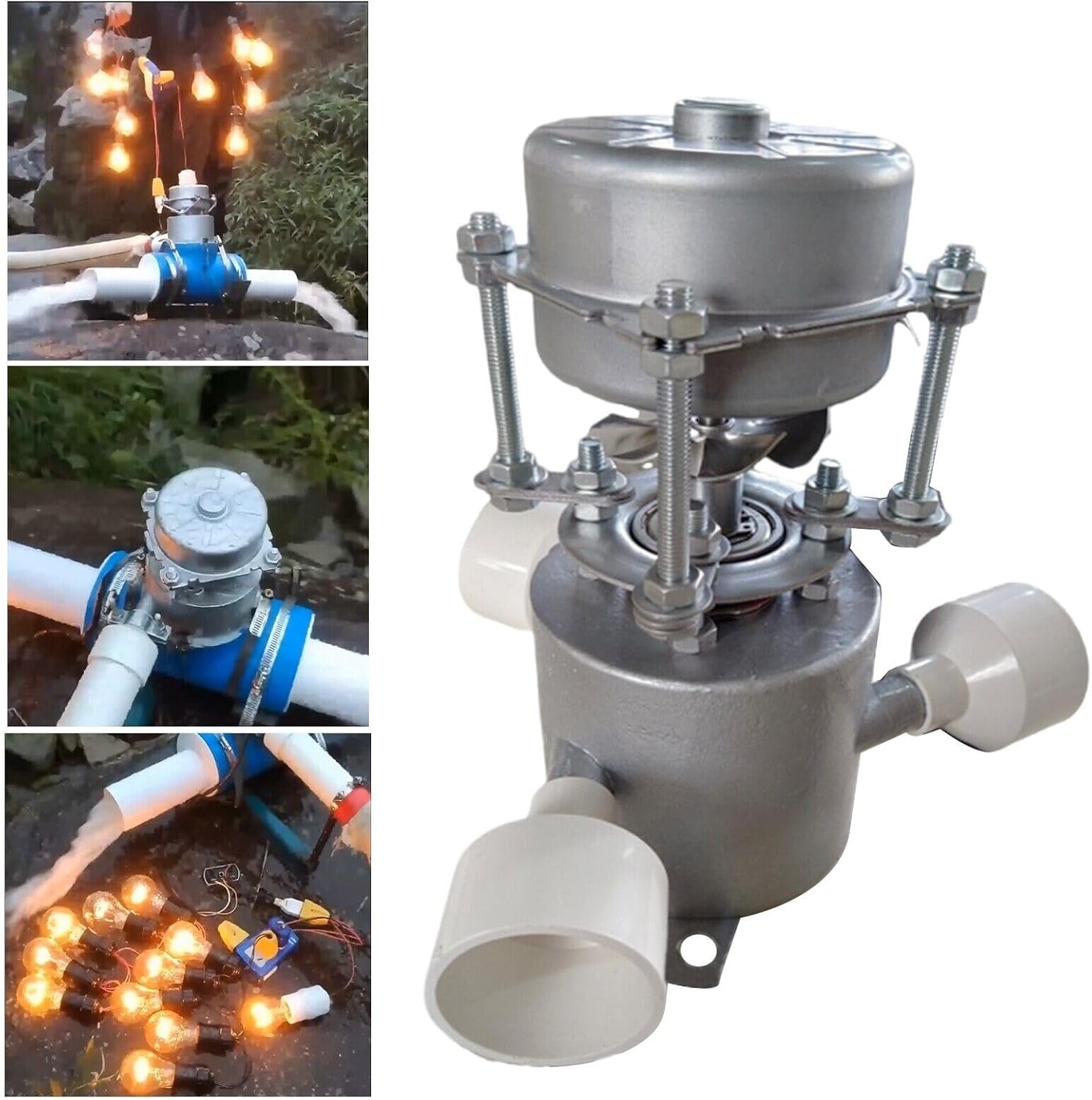

New 1000W Hydroelectric Generator 3 Connectors 110V/220v 50Hz Aluminum

New 1000W Hydroelectric Generator 3 Connectors 110V/220v 50Hz Aluminum Alloy Turbine Hydroelectric Generator Lighting Charger Mobile Phone (Color : 1000W, Size : 110V)

$128.58 $333.57

Specification:

Material: aluminum alloy
Coil: pure copper coil
The generator drop requires 3-30 meters, and the drop is calculated according to the vertical height.

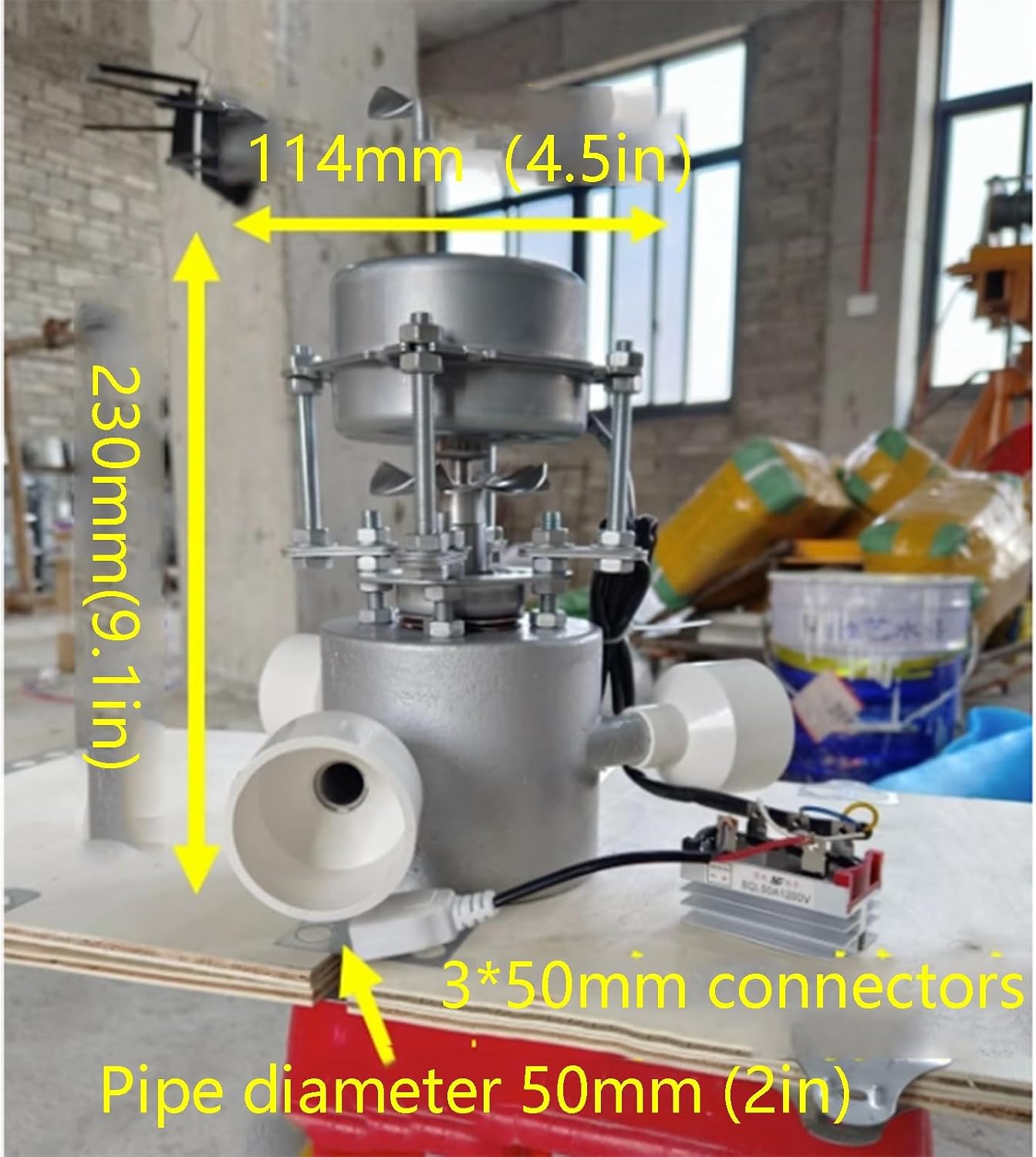

A pipe diameter of 50mm is required,
The amount of water needs the entire pipe.
To fully charge the generator, the above requirements must be met

The tubes can produce 1,000 watts with a drop of 50mm and 30m.
3 meters drop can send 10-20 watts
10 meters drop can send 100-300 watts,
A drop of 15 meters can deliver about 300-500 watts
20m drop delivers approximately 500-700 watts of power
A 30 meter drop delivers about 700-1000 watts of power

The water outlet of the generator is connected with the drain pipe. The farther away from the water the better. Connect the pipes around the generator to keep water from flying around.

Wrap the alternator head in a bag or electrical tape and place it out of the way of rainwater. Pay attention to the connection of all lines to avoid leakage.

Take a look at the PVC joints you've fired. If the plastic joint is softened with fire, it can be put in naturally.

Seal the gap with AB glue after insertion. The generator only needs to pay attention to the waterproof work, and don't worry about others.

box:

1 x 1000W Mini Hydro Generator
